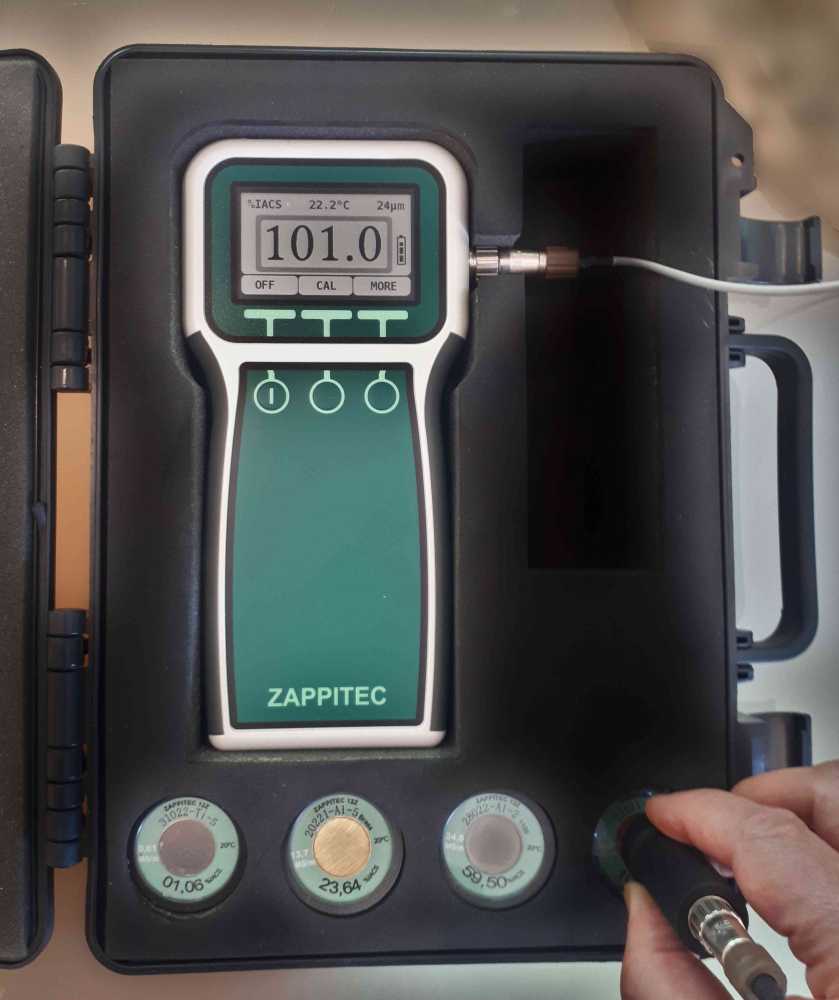

The new Series 1200 Eddy Current Conductivity Meter for metals allows non-contact measurements of non-magnetic alloys. The measurements are shown immediately in %IACS or MS/m. Our probes have a small diameter and provide exceptional lift-off compensation allowing measurements in small painted or anodized samples. The series 1200 features interchangeable plug-and-play factory-calibrated probes which allow for easy maintenance and zero downtime during calibration cycles by way of using spare probes.

Conductivity measurements are returned in %IACS (Percentage of International Annealed Copper Standard) and optionally in MS/m (MegaSiemens per meter) units. The conductivity of copper is approximately 100 %IACS at 20°C. Our instrument is calibrated against international standards (Boeing) and measures non-destructively based on the Eddy Current principle. The conductivity of metals varies with temperature but readings are compensated automatically to the values at 20°C by adjustment with known standards provided with the instrument. Contact us for more information.

Download Series 1200 brochure here

Download Series 1200 manual here

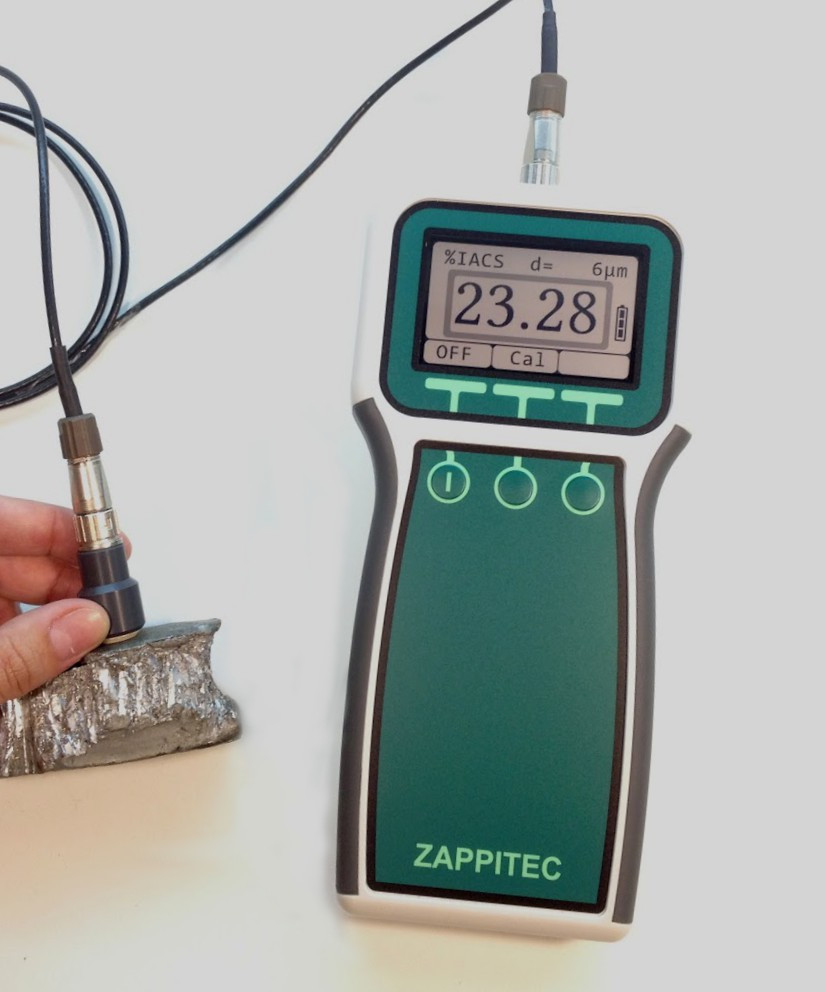

The model 12Z Eddy Current Conductivity Meter for metals allows non-contact measurements of non-magnetic alloys. The measurements are shown immediately in %IACS or MS/m. Our probes have a small diameter and provide exceptional lift-off compensation allowing measurements in small painted or anodized samples. The 12Z also displays the approximate coating thickness which provides more useful information about the measurement.

Conductivity measurements are returned in %IACS (Percentage of International Annealed Copper Standard) and optionally in MS/m (MegaSiemens per meter) units. The conductivity of copper is approximately 100 %IACS at 20°C. Our instrument is calibrated against international standards (Boeing) and measures non-destructively based on the Eddy Current principle. The conductivity of metals varies with temperature but readings are compensated automatically to the values at 20°C by adjustment with known standards provided with the instrument. Contact us for more information.

Download model 12Z brochure here

Download model 12Z manual here

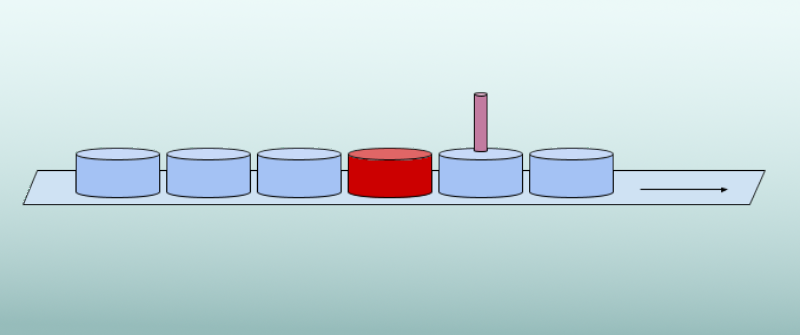

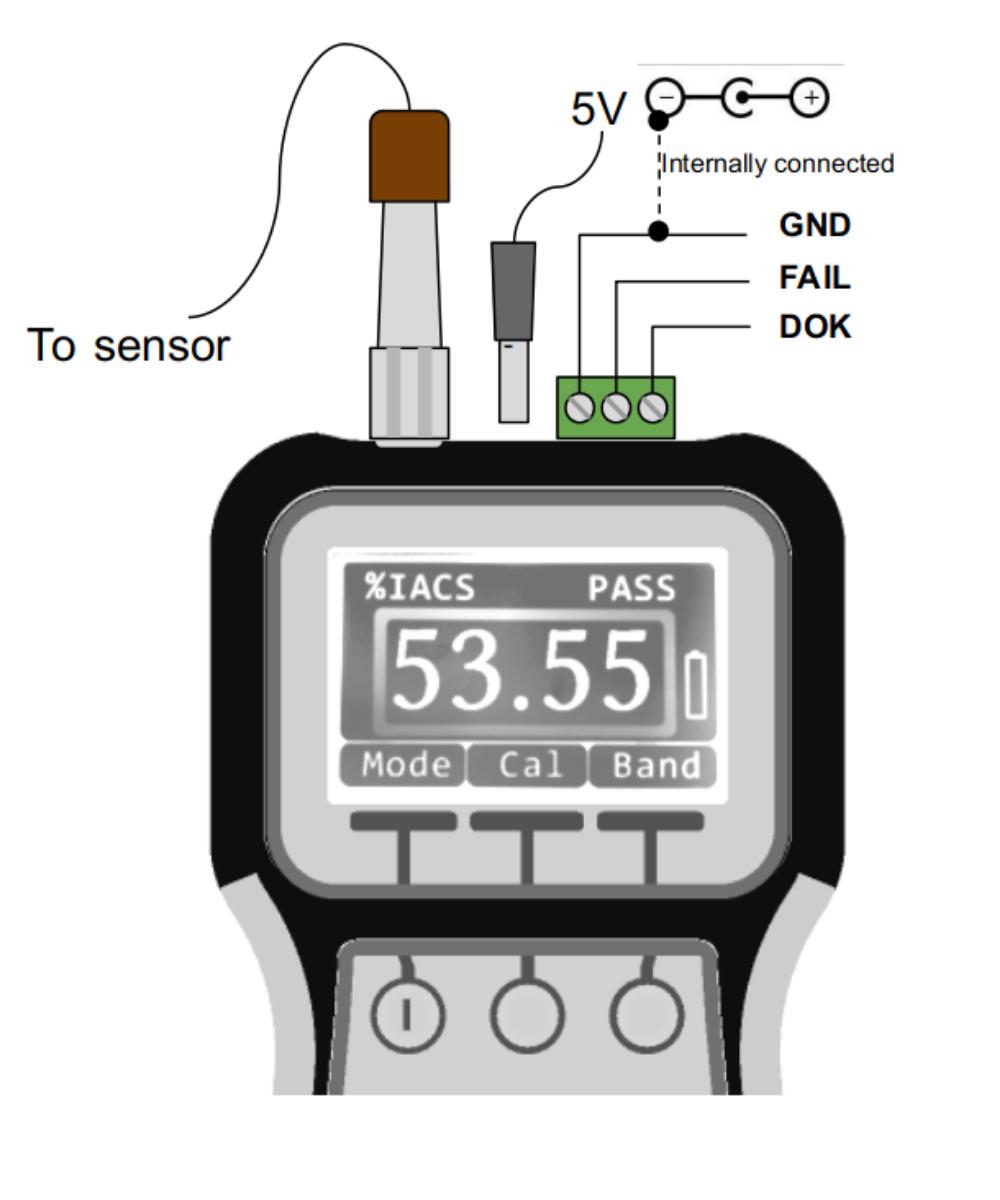

The Model 12A is used exclusively in automated serialized part applications where metal sorting by conductivity is desired. A conductivity range is selected and the model 12A will reject the parts falling outside this range.

Download model 12A brochure here

Download model 12A manual here

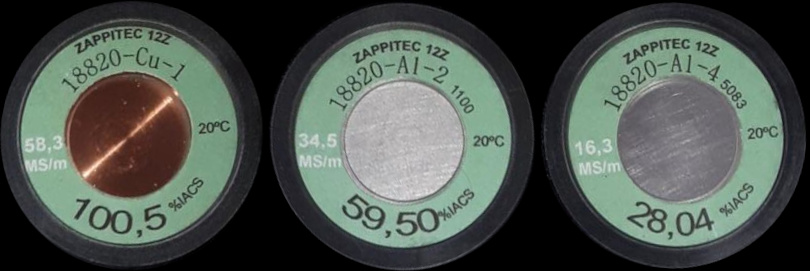

Our conductivity standard blocks can be ordered separately. They are calibrated against Boeing Standards which ensures traceability. We can provide a certificate of calibration if requested.

If you need a product that is not offered here, please contact us. We will strive to evaluate and quote exactly what you need at a reasonable price.
